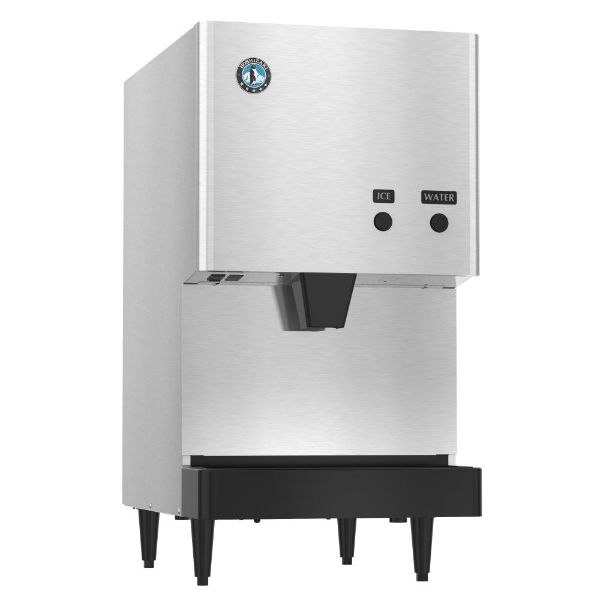

DCM-270BAH Hoshizaki ice machine/dispenserDELETE

Code: 65-3020

CA$12,640.00

Status: Out of Stock

FEATURES

FEATURES

  • Vendor Name: Hoshizaki
  • Vendor code: DCM-270BAH

    • SPECIFICATIONS

    SPECIFICATIONS

  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • ENERGY STAR® Qualified: No
  • Electrical Specs: Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug, Amperage: 8.5, Max Fuse/HACR Breaker: 15 A

    • ADDITIONAL INFO

    ADDITIONAL INFO

  • Item Height (inches): 31-11/16
  • Item Length (inches): 24-1/8
  • Item Width (inches): 16-9/16
  • Number of meals mini - maxi:
  • Operating Limits:: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3532 BTU/hr, Refrigerant Charge: R-404A, (14.8 oz. / 420 g)
  • Plumbing Specs:: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
  • Product Series: Cubelet
  • REFRIGERANT: R-404A
  • TYPE: Air-Cooled
  • Utilities:: Plumbing: 3/4" FPT drain
  • Utility Consumption:: 7.6 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
