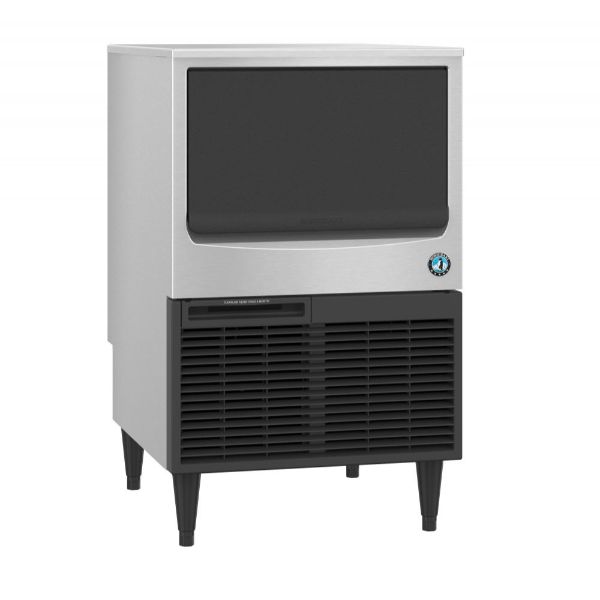

KM-161BAJ Ice maker with bin air cooled

Code: 65-3028

CA$10,304.00

Status: In Stock

FEATURES

FEATURES

  • Vendor Name: Hoshizaki
  • Vendor code: KM-161BAJ

    • SPECIFICATIONS

    SPECIFICATIONS

  • Five Years: Parts & Labor warranty on evaporator.
  • Three Years: Parts & Labor warranty on entire machine.
  • ENERGY STAR® Qualified: No
  • Electrical Specs: Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 7.1, Max Fuse/HACR Breaker: 15 A

    • ADDITIONAL INFO

    ADDITIONAL INFO

  • Item Height (inches): 39
  • Item Length (inches): 28
  • Item Width (inches): 23-3/4
  • Number of meals mini - maxi:
  • Operating Limits:: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3050 BTU/hr, Refrigerant Charge: R-134a, (7.4 oz. / 210 g)
  • Plumbing Specs:: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
  • Product Series: Crescent Cube
  • REFRIGERANT: R-134a
  • TYPE: Air-Cooled
  • Utility Consumption:: 8.6 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
